C-Frame Hydraulic Press

C-Frame Hydraulic Press

C-Frame Hydraulic Press

‘C’ Frame Type Power Press is configured with the use of latest technology. These optimally functional presses are simple to install and requires minimum maintenance. They can be customized as per the specific needs of the customers.

Features

The adaptability and flexibility of C-frame presses are their primary advantages.
It can be applied to many other tasks, such as drawing, shaping, and stamping.
In addition, C-frame presses provide several benefits over other kinds of presses, including increased productivity and accuracy.
C-frame presses also have a lot to offer in terms of operator comfort and safety. There is less chance of harm because the operator is not in the ram’s path.

Application

Hydraulic presses with a common name are C-frame presses, also called gap-frame presses. The C-shaped structure of these presses gives them a distinct moniker compared to other kinds of presses.
C-frame presses are made to have a small footprint, good functionality, and little stroke deflection. C-frame presses, like other hydraulic presses, are very adaptable and have uses in a wide range of sectors.

Variant Capacity

100 Ton

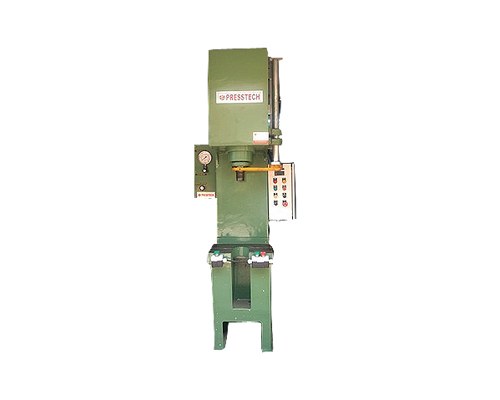

20 Ton

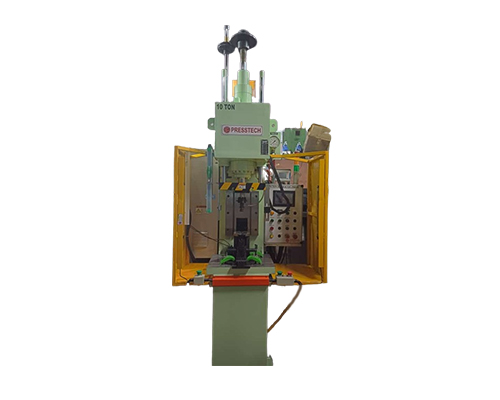

10 Ton

	C-FRAME PRESS – PTCP							SPEEDS:
MODEL	CAPACITY	POWER	TABLE SIZE	STROKE	DAYLIGHT	WORKING	APPROACH	PRESSING	RETURN
CODE	TON	HP	MM	MM	MM	HEIGHT	MM/Sec	MM/Sec	MM/Sec
PTCP 05	5	3	400X400	250	550	800	70	7	90
PTCP 10	10	5	400X400	250	550	800	100	10	100
PTCP 15	15	5	500X400	400	700	800	120	15	120
PTCP 20	20	7.5	500X400	400	550	800	120	15	150
PTCP 30	30	15	550X450	450	550	800	140	18	160
PTCP 40	40	10	800X500	400	750	900	110	18	150
PTCP 50	50	15	800X600	450	800	900	150	18	150
PTCP 60	60	20	800X600	500	800	900	150	18	160
PTCP 100	100	25	800X600	400	700	900	140	15	160
PTCP 200	200	40	800X600	400	800	900	140	15	160
