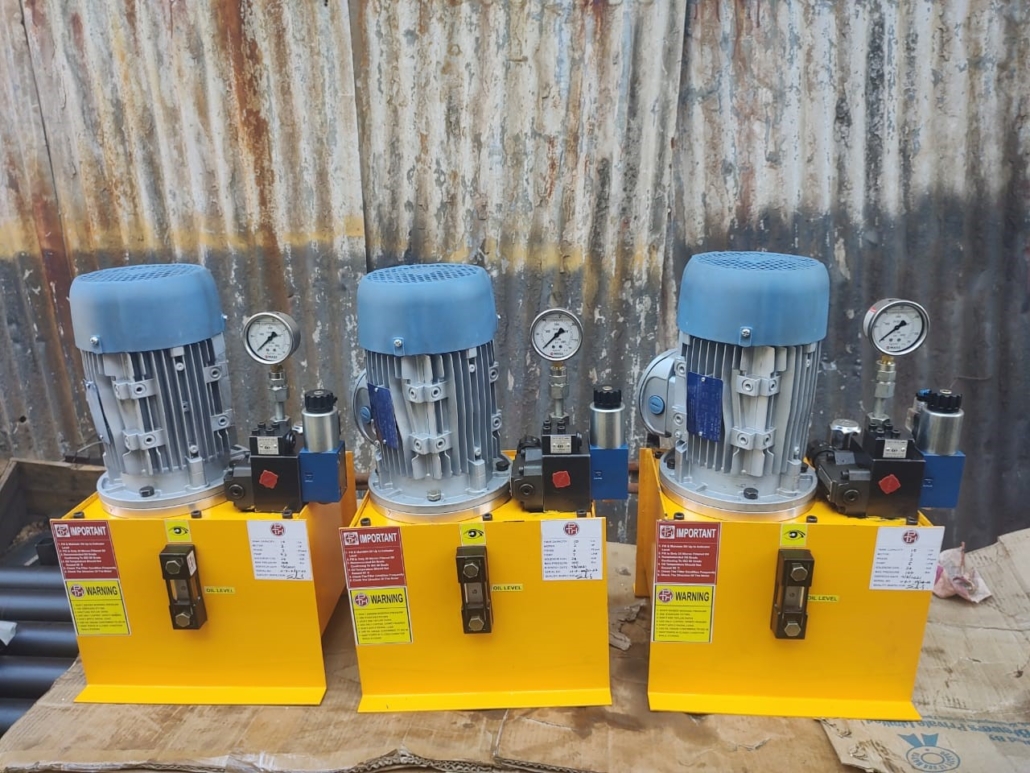

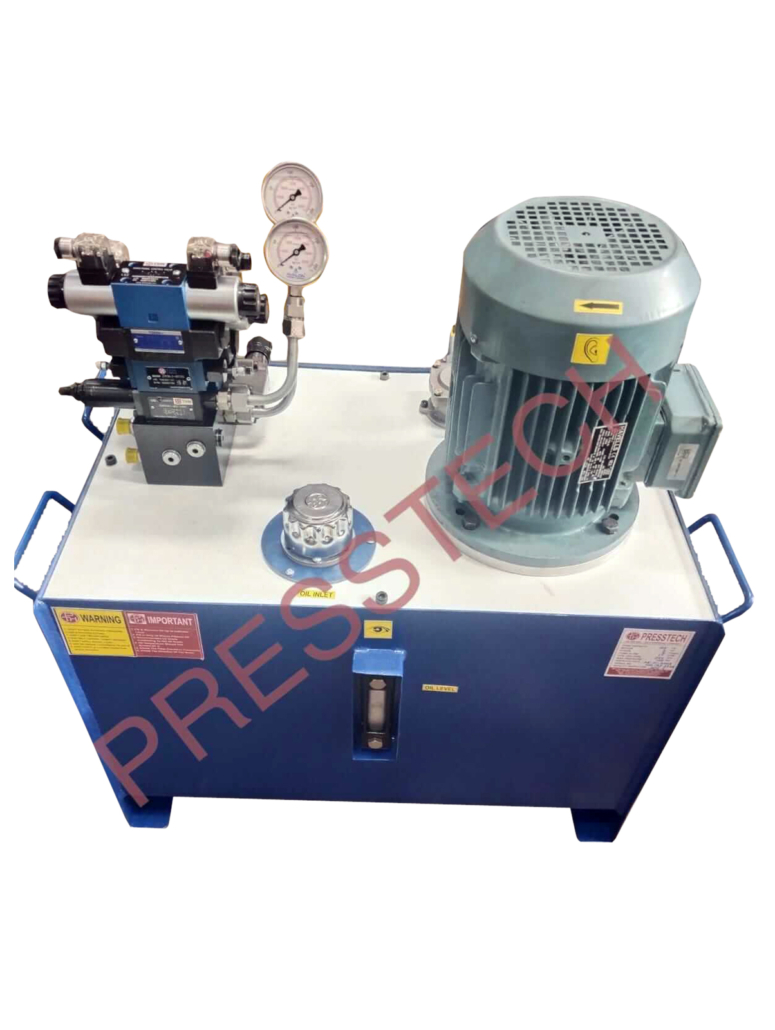

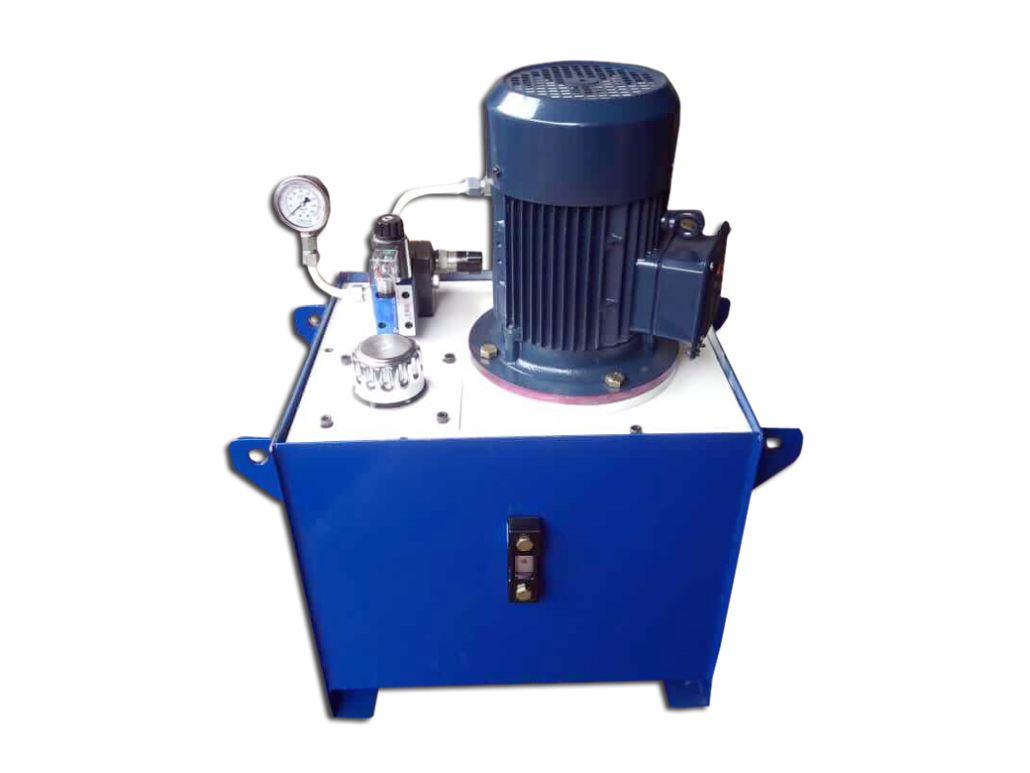

Hydraulic Power Packs
Rigid fabricated structure, Stress relieved, Manufactured to high quality standards with stage wise inspections.
Power packs powered with high performance quality hydraulic systems. Precise Guiding arrangements, Adjustable moving slides with self lubricating system. PLC controlled without or with Panel view (HMI) for sequence setting, Diagnostic capabilities.
We are among the pre-eminent companies to proffer Hydraulic Power Packs that are demanded in construction, railway, shipbuilding, petroleum, coal and metallurgy industries. Due to the excellent working speed, optimum-working pressure, these power packs are quite suitable for hydraulic work over units in servicing oil as well as gas wells. Before the final transmission, the range is checked for its performance, on multiple parameters.
An independent unit made up of a drive motor, hydraulic pump, and hydraulic fluid tank is called a hydraulic power pack. The drive motor powers the hydraulic pump by means of a shaft connection. It is possible to install the pump and motor inside the oil tank or on top of it. The task and application determine the tank size, withdrawal, feed, and essential flow rates, which must be set appropriately. The size of the consumers and the total amount of fluid required by the hydraulic system are taken into consideration when determining the extracted volume. Here, the fluid’s warming as well as any possible leaks must be taken into account. The smallest diameter is when the critical flow speed happens. It powers the pump.
Standard hydraulic power packs, oil-immersed hydraulic power packs, and tiny hydraulic power packs (also known as micro power packs) are distinguished based on their respective designs. When it comes to hydraulic power packs submerged in oil, the electric drive is built right into the tank (submerged motor). This makes it possible to attain extremely compact external dimensions for the power pack. Heat lost from the motor is transferred to the hydraulic oil by the electric drive. An excessively high oil temperature could occur from an extended switch-on period. The electric drive in a tiny hydraulic power pack is mostly flange-mounted on the exterior of the tank.
The Company undertakes Design, Manufacture, Installation and Servicing of the power packs as per customer requirements.
- We can develop system up to 75 HP Capacity for various operations.
- We can supply Hydraulic valve, Pumps of any makes like Rexroth, Yuken, Polyhydron, Vickers, Veljan, Compass, prism, Dowty etc..
- We can supply Hydraulic Manifold Blocks.
For Press Tech Hydraulic Power Pack Repair & Services Call @ 86088 81723
- 01.Technical Support
Includes All Sort Of Helps Required By Clients At The Time Of Installation
and Commissioning of Hydraulic Power Pack. - 02.After Sales Services
Every Industrial Hydraulic Power Pack Requires Complete Technical Support
and Quick After-Sales-Service, Presstech Provides. - 03.Erection & Supervision
Erection And Supervision Includes All Kind Of Service Required By Clients
at The Time Of Installation and Assigning The Hydraulic Power Pack
Application
- SPM Machines
- Auto Mobile Industries

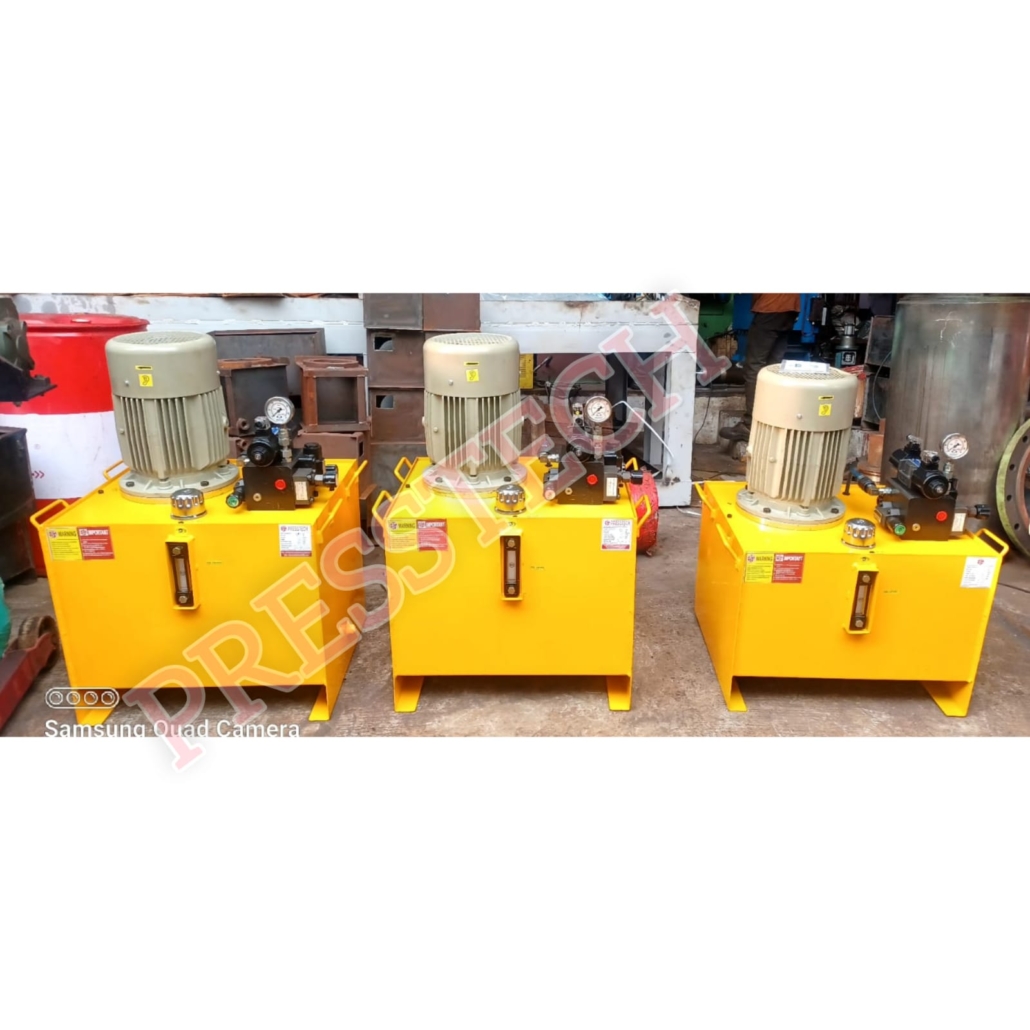

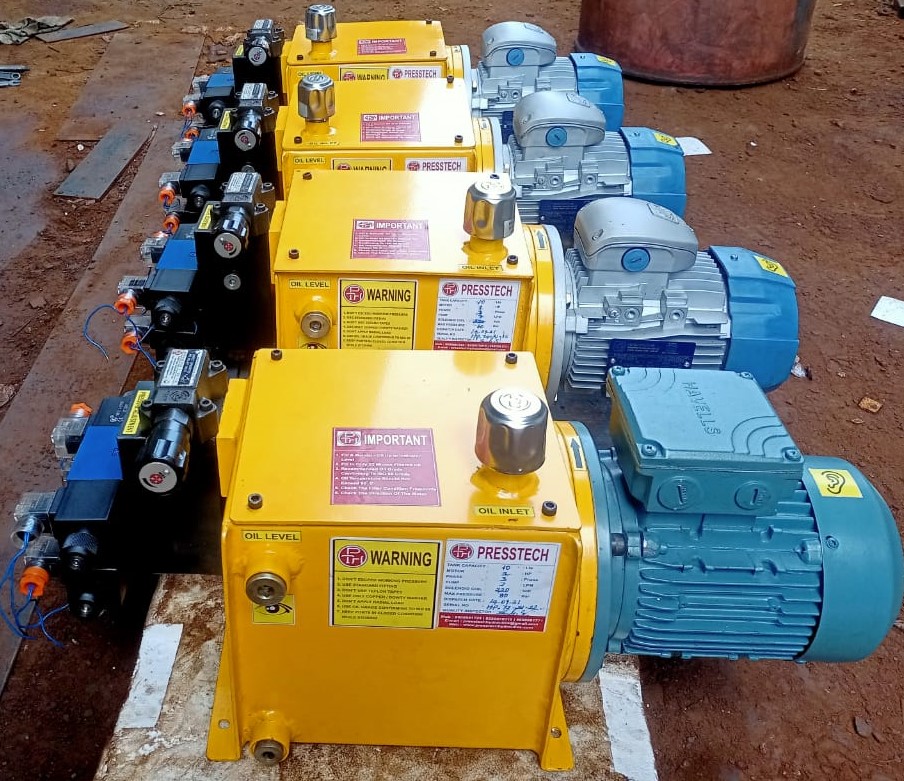

- Material Handling Equipments like (Goods Lift, Scissor Lift, Dock Leveller)

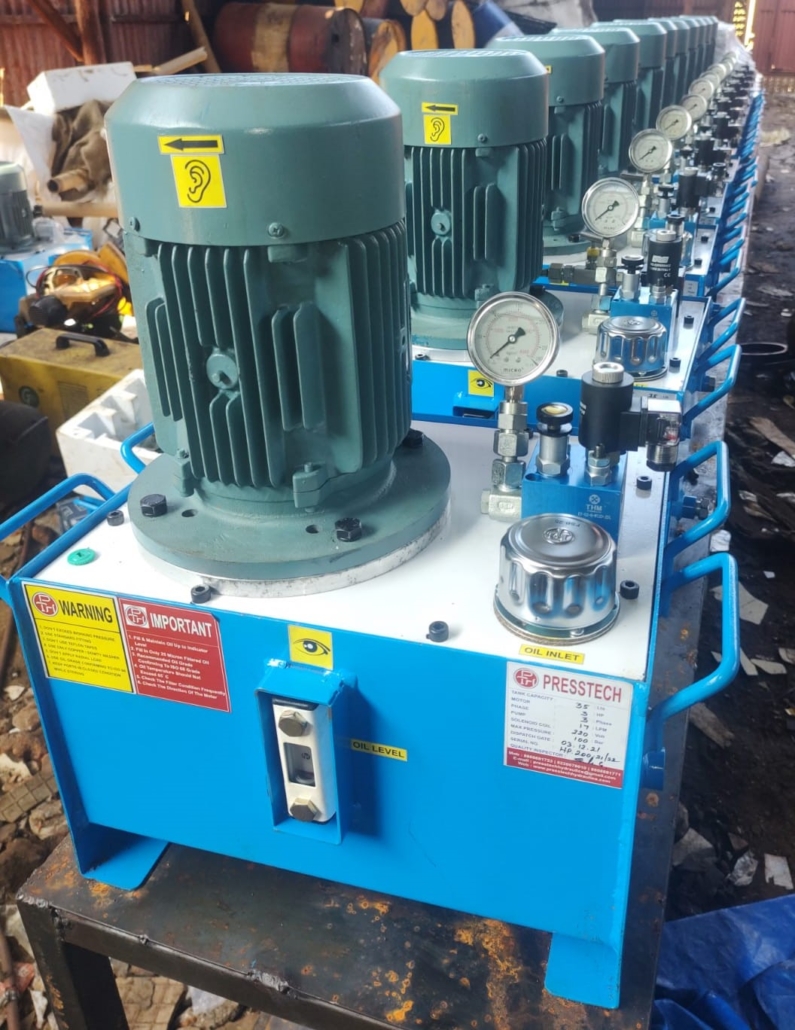

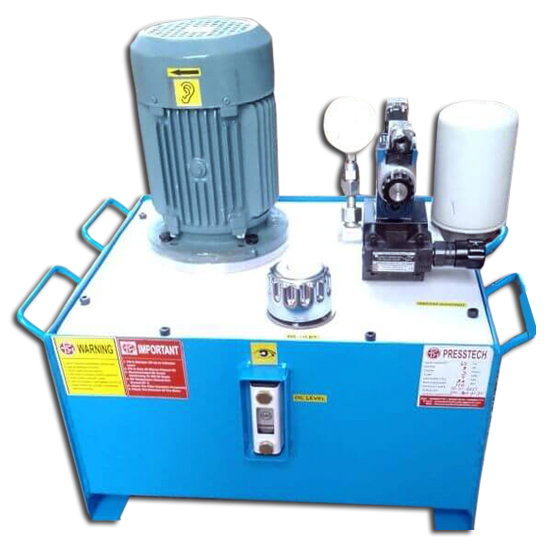

- Passenger Lift
- CNC & VMC Machineries
