Closed Frame Cold Forging Press

Closed Frame Cold Forging Press

Closed Frame Cold Forging Press

If one looking for the quality Hydraulic Cold Forging Press, then the best destination will be our company. We provide our clients with durable, accurate and supreme quality equipment at a very reasonable price. This equipment is mainly used to generate force, which can be used for industrial purpose. This machine is surely a must to reduce mechanical power.

Features

Hydraulic press with a single motion for stamping and sheet metal drawings However, this press is distinguished by its increased precision and hardness.
Proportional pressure and hydraulic servo valves that are imported may be used. The machine tool is in a state of equilibrium and operates at a very high speed without any impact. adopted in order to achieve precise alignment of the hydraulic cushion and sliding block.
The hydraulic system is equipped with specialised monitoring software that includes a digital display, curve diagram, and operating cycle time, pressure setting, slide block position, pressure release time, travel speed, travel setting, complete I/O information, data setting for one or more sections, and error alarm.

Application

Used for Blanking
Compacting
Moulding
Embossing
Punching
Deep Drawing
Coining and
other general applications.

Variant Capacity

CLOSED FRAME COLD FORGING PRESS – PTCFP							MAIN CYLINDER SPEEDS:				EJECTOR CYLINDER DETAILS & SPEEDS:
MODEL	CAPACITY	POWER	TABLE SIZE	STROKE	DAYLIGHT	WORKING	APPROACH	PRESSING	RETURN	CAPACITY	APPROACH	RETURN
CODE	TON	HP	MM	MM	MM	HEIGHT	MM/Sec	MM/Sec	MM/Sec	TON	MM/Sec	MM/Sec
PTCFP 40	40	10	400X400	300	700	900	120	15	140	10	60	80
PTCFP 75	75	15	400X400	400	700	950	120	15	140	15	60	80
PTCFP 100	100	20	500X500	400	700	950	120	12	140	15	60	80
PTCFP 150	150	30	500X500	400	700	950	120	12	140	20	60	80
PTCFP 200	200	30	600X600	400	700	950	120	12	140	25	60	80
PTCFP 250	250	40	700X700	400	700	950	120	12	140	30	60	80
PTCFP 300	300	50	700X700	400	700	950	120	12	140	30	60	80
PTCFP 400	400	50	800X800	500	800	1000	120	12	140	40	60	80

Closed Frame Cold Forging Press

Closed Frame Cold Forging Press

Closed Frame Cold Forging Press

Features

Application

Variant Capacity

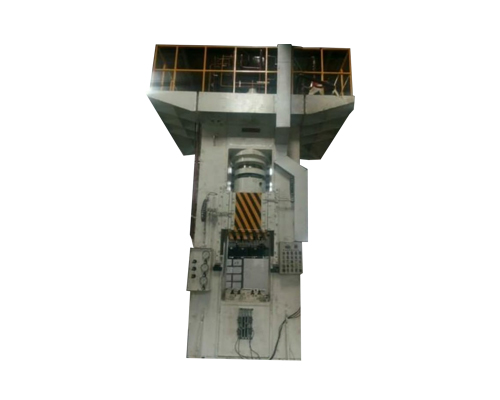

400 Ton
